ALTA Industrial Wireless Three Phase Current Meter - 500 Amp

ALTA Industrial Wireless Three Phase Current Meter - 500 Amp
View Format Features
£57200(£686.40 incl. VAT)

Part #:MNS2-8-IN-3P-500

Frequency:868 MHz (Euro)

Battery: 10 years

Range: 360 metres

Free Delivery

UK orders over £100

Money Back Guarantee

100% refund

Information

Product Description

The ALTA Industrial Wireless Three Phase Current Meter (500 Amp) measures the RMS current of an alternating current (AC) system using 3 current transformers (CTs) that wrap around the wires of a three phase power system. The sensor reports Minimum RMS current, maximum RMS current, average RMS current, and duty cycle for each phase and the combined amp hours of all three phases to the iMonnit system. The iMonnit system is capable of generating watt hour or kilowatt hour readings as well based on a user specified RMS voltage.




ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit’s standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.

ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.



Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can’t be delivered will be time-stamped and stored in memory (up to the last 3100 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Monnit ALTA Industrial Sensors come in an IP65, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).

An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 8-10 years.

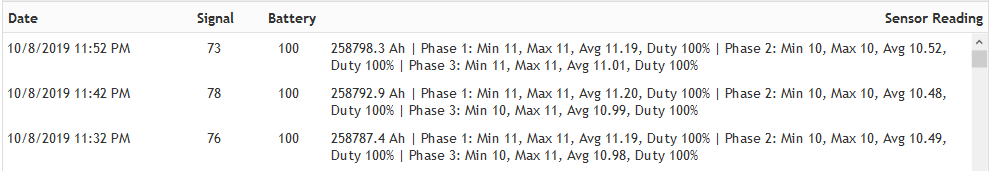

What does this wireless sensor's data look like in software?

Three Phase Current Meter - Data View in Software



What's in the box?

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Specifications

Absolute Max CT Current 600 Amps RMS (A rms)

Maximum Accurate CT Current 500 Amps RMS (A rms)

Frequency Measurement Range 50 - 100 Hz

Accuracy +/- 2% @ 2 to 500, +/- 0.4 A rms @ < 15 A rms

Measurement Resolution 0.01 A rms
Max: 1 A rms
Min: 1 A rms
Duty: 1%
Amp Hours: 0.1 Amp Hours

Dimension 67 mm x 49 mm x 42 mm (24 mm inner diameter)

Weight 28.7 oz.

UL Rating UL Listed to UL508-4x specifications (File E194432)



ALTA Industrial Specifications


Supply Voltage 2.0 - 3.8 VDC

Battery Type Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life Up to 10 Year Battery Life.**

Max Operating Temperature -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature +10°C to +50°C (+50°F to +122°F)

Enclosure Material IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating UL Listed to UL508-4x specifications (File E194432)

Dimension 3.7 in x 2.32 in x 1.38 in



ALTA 868 MHz Specifications


Operating Frequency 868 MHz Operating Frequency

Certifications CE Certified. Tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950.

Security Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)

Device Range Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*


Specifications Image

Applications

Suggested Application Uses for This Sensor



  • Current Monitoring
  • Current Usage
  • Amperage Monitoring
  • Amp Hour Meter
  • And Many More..
