ALTA Wireless Light Meter - Commercial AA Battery Powered

ALTA Wireless Light Meter - Commercial AA Battery Powered
  • AA
View Format Features
£12900(£154.80 incl. VAT)

Part #:MNS2-8-W2-LS-LM-SW

Frequency:868 MHz (Europe)

Battery: 10 years

Range: 300 metres

Free Delivery

UK orders over £100

Money Back Guarantee

100% refund

Information

Product Description

ALTA wireless light meters measure the intensity of light in lux (luminescence/unit area), from 0 – 1000 lux (indoor range). Perfect for light sensitive applications like museum and art gallery light monitoring. User customization allows you to set the frequency of readings and the ability to set thresholds for notifications and alerts by SMS text, email or voice call from the system.



ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit’s standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 10+ years.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.



Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can’t be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.

Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.





Product Features

  • Highly sensitive photodiode.
  • Good for light sensitive applications.





  * Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.





What does this wireless sensor's data look like in software?

Monnit Light Meter - Data View in Software





What's in the box?

  • Wireless Sensor
  • Mounting Hardware
  • 2 x AA Batteries



Specifications



LUX Sensor Specifications


Sensing Technology High Sensitivity Photodiode

Sensor Material Silicon

Peak Wavelength 580 nm

Maximum Reverse Voltage 6 V

Maximum Power Dissipation 40 mW

Maximum Light Current 500 uA

Maximum Dark Current 0.3 uA

Maximum Rise Time 8.5 ms

Maximum Fall Time 8.5 ms

Maximum Operating Temperature Range -30°C to +85°C



ALTA AA Specifications


Battery Type 2 Replaceable AA 1.5 V Batteries

Dimension 4.375 in x 2.470 in x 1.12 in

Supply Voltage 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)

Battery Life At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years. **

Max Operating Temperature Using AA Alkaline -18°C to 55°C (0°F to 130°F)

Max Operating Temperature Using AA Lithium -40°C to 60°C (-40°F to 140°F)

Optimal Battery Operating Temperature +10°C to +50°C (+50°F to +122°F)

Enclosure Material ABS



ALTA 900 MHz Specifications


Operating Frequency 900 MHz Operating Frequency

Device Range Up to 1,000 ft. non-line-of-sight, wireless device range*

Security Diffie-Hellman Key Exchange + AES-128 CBC

Certifications Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)
Complies with Industry Canada standards. (IC: 9794A-G2SC1)

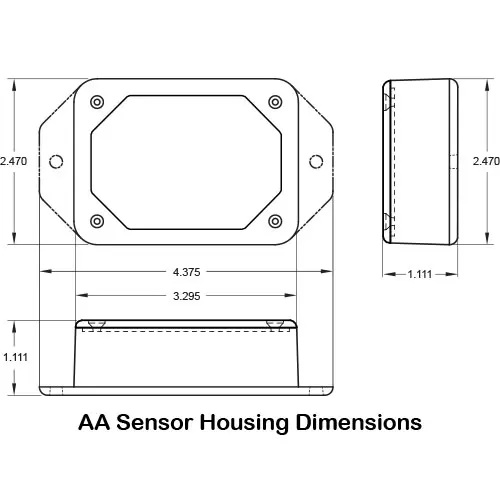

Specifications Image

Documentation





























Applications



Suggested Application Uses for This Sensor



  • Art gallery light metering
  • Museum light metering
  • Greenhouse solar and light level tracking
