Probe:
Part #:MNS-8-IN-TS-ST-L10
Frequency:868 MHz (Euro)
Battery: 3-4 years
Range: 100 metres
Free Delivery
UK orders over £500
Money Back Guarantee
100% refund
X
Available Formats
Coin Cell
- Cost Low
- Battery 2 Years
- Size Small
- Range 100m
- Connectivity Gateway
AA
- Cost Average
- Battery 4 Years
- Size Medium
- Range 100m
- Connectivity Gateway
Industrial
- Cost Higher
- Battery 5 Years
- Size Average
- Range 100m
- Connectivity Gateway
- Waterproof IP65
- Solar Power Option
Information
Product Description
Monnit wireless temperature sensors use a thermistor to accurately measure temperatures. These sensors are perfect for monitoring ambient temperatures around the sensors physical location. User customization allows you to set the frequency of readings and the ability to set thresholds for alerts via SMS text and/or email.
NIST certified product is available.
Monnit Industrial Sensors come in an IP66, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).
An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 5 years.
Product Features
- Accurate to +/- 1°C (1.8°F).
- Available with an external temperature probe.
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
What does this wireless sensor's data look like in software?
What's in the box?
- Mounting Hardware
- Batteries
Specifications
Thermistor Specifications |
|
| Sensing Element | Thermistor |
| Thermistor Operating Range | -40°C to 125°C |
| Accuracy @ 25°C | +/- 1% |
| B-Constant (25°C – 50°C) | 3380 ± 1% |
| Permissive Operating Current @ 25°C | 0.38 mA |
| Rated Electric Power @ 25°C | 15 mW |
| Dissipation Constant @ 25°C | 1.5mW/°C |
| Time Constant @ 25°C | 7 sec |
| Resistance @ 25°C | 10K ± 1% |
Industrial Specifications |
|
| Battery Type | Replaceable, Single AA, 2500mAH, 3.6V Battery |

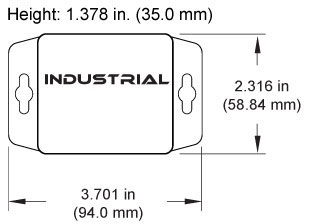

| Dimension | 3.7 in x 2.32 in x 1.38 in |
| Max Operating Temperature | -40° to 85°C (-40° to 185°F) |
| Supply Voltage | 2.0 - 3.6 V |
| Device Range | 300 - 350 ft. non-line-of-sight device range* |
| Battery Life | Up to 5 Year Battery Life.** |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Solar Power Option | 3.0 vdc solar panel |
| Enclosure Material | IP66 NEMA 4X, CE rated, sealed, weatherproof enclosure |
866 Mhz Specifications |
|
| Operating Frequency | 866 Mhz Operating Frequency |
| Certifications | CE Certified and Complies with CISPR 22:2008-09 / EN 55022:2010 - Class B and ETSI EN 300 220-2 V2.4.1 (2012-05) |
Contact us for volume quantity purchases of RoHS compliant product.
Applications
Suggested Application Uses for This Sensor
- Warehouse temperature monitoring to avoid frozen fire suppression systems
- Monitor vacant commercial property temperatures to avoid frozen pipes
- Summer/winter (vacation) property monitoring for frozen pipes or excessive heat
- HVAC system monitoring to detect failures or heating / cooling issues
- Monitor temperature of K9 units (dog collar's and kennel)
- Art gallery temperature monitoring
- Heat remediation of bed bugs (extermination)
- Freezer and cooler temperature monitoring to detect failure and prevent food spoilage
- Server room temperature monitoring
- Cadaver storage cooler temperature monitoring
- Greenhouse temperature monitoring
Information
Product Description
Monnit wireless temperature sensors use a thermistor to accurately measure temperatures. These sensors are perfect for monitoring ambient temperatures around the sensors physical location. User customization allows you to set the frequency of readings and the ability to set thresholds for alerts via SMS text and/or email.
NIST certified product is available.
Monnit Industrial Sensors come in an IP66, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).
An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 5 years.
Product Features
- Accurate to +/- 1°C (1.8°F).
- Available with an external temperature probe.
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
What does this wireless sensor's data look like in software?
What's in the box?
- Mounting Hardware
- Batteries
Specifications
Thermistor Specifications |
|
| Sensing Element | Thermistor |
| Thermistor Operating Range | -40°C to 125°C |
| Accuracy @ 25°C | +/- 1% |
| B-Constant (25°C – 50°C) | 3380 ± 1% |
| Permissive Operating Current @ 25°C | 0.38 mA |
| Rated Electric Power @ 25°C | 15 mW |
| Dissipation Constant @ 25°C | 1.5mW/°C |
| Time Constant @ 25°C | 7 sec |
| Resistance @ 25°C | 10K ± 1% |
Industrial Specifications |
|
| Battery Type | Replaceable, Single AA, 2500mAH, 3.6V Battery |
| Dimension | 3.7 in x 2.32 in x 1.38 in |
| Max Operating Temperature | -40° to 85°C (-40° to 185°F) |
| Supply Voltage | 2.0 - 3.6 V |
| Device Range | 300 - 350 ft. non-line-of-sight device range* |
| Battery Life | Up to 5 Year Battery Life.** |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Solar Power Option | 3.0 vdc solar panel |
| Enclosure Material | IP66 NEMA 4X, CE rated, sealed, weatherproof enclosure |
866 Mhz Specifications |
|
| Operating Frequency | 866 Mhz Operating Frequency |
| Certifications | CE Certified and Complies with CISPR 22:2008-09 / EN 55022:2010 - Class B and ETSI EN 300 220-2 V2.4.1 (2012-05) |
Contact us for volume quantity purchases of RoHS compliant product.
Applications
Suggested Application Uses for This Sensor
- Warehouse temperature monitoring to avoid frozen fire suppression systems
- Monitor vacant commercial property temperatures to avoid frozen pipes
- Summer/winter (vacation) property monitoring for frozen pipes or excessive heat
- HVAC system monitoring to detect failures or heating / cooling issues
- Monitor temperature of K9 units (dog collar's and kennel)
- Art gallery temperature monitoring
- Heat remediation of bed bugs (extermination)
- Freezer and cooler temperature monitoring to detect failure and prevent food spoilage
- Server room temperature monitoring
- Cadaver storage cooler temperature monitoring
- Greenhouse temperature monitoring
