Monnit Wi-Fi Infrared Motion Sensor

Wi-Fi Infrared Motion Sensor
View Format Features
£20000(£240.00 incl. VAT)

    High Gain Antenna:

  • No

Part #:MNS2-NXT-MS-IR

Frequency:WiFi

Battery: 5 years

Range: 50 metres

Free Delivery

UK orders over £500

Money Back Guarantee

100% refund

Information

Product Description

The Next™ Wifi motion sensors use an infrared sensing technology to accurately detect movements made by people/animals within 16.4 ft (5 m) range. User customization allows you to receive notifications by SMS text or email the instant motion is detected.








Product Features

  • Passive Infrared Technology.
  • Software Adjustable Range of 9 ft /12 ft / 15 ft
  • Response time: 1-3 seconds
  • Wireless Range: 125 feet through five walls or 500-ft line of sight1
  • Power: Two replaceable 1.5V AA batteries (included)
  • Communications: 802.11b/g/n (2.412-2.484 GHz)
  • Wi-Fi Security: OPEN, WPA, WPA2, WPA3
  • Wi-Fi Provisioning: Bluetooth® via app- Sensor data is available in iMonnit after Wi-Fi is successfully provisioned- Best-in-class power management for longer battery life2
  • Data logs up to 4096 readings if the Wi-Fi connection is lost (non-volatile flash, persists through the power cycle):
    - 10-minute Heartbeats = ~ 22 days
    - 2-hour Heartbeats = ~ 266 days
  • Over-the-air updates (future-proof)
  • Power/Utility Button: Powers device on/off, triggers data transmission, change operating mode, etc.3
  • LED Indicator: Shows status and activity.3

1. Actual range may vary depending on the environment.
2. Battery life is determined by the sensor reporting frequency and other variables.
3. For a full description of Button/LED behaviors see the Next Sensor General Information Guide.



What does this wireless sensor's data look like in software?

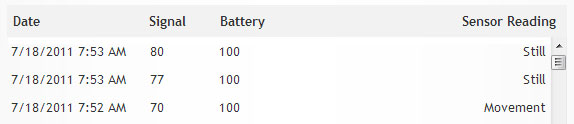

Motion Sensor Data View in Software





What's in the box?

  • Wifi Sensor



Specifications



Infrared Motion Sensing Element Specifications

Sensing Technology Quad Array Passive Infrared (PIR)

Typical response time 1-3 seconds motion, 5-10 seconds no motion1

Viewing angle 80' 4

Max. Range 13.1 to 16.4 ft (4-5m) 2,3

Configurable range 9ft / 12ft / 15ft (software configurable) 2,3



Wi-Fi Specifications

Battery Type 2 Replaceable AA 1.5 V Batteries

Max Operating Temperature PCB -18°C to +55°C (0°F to +130°F)

Optimal Alkaline Battery Operating Temperature +10°C to +50°C (+50°F to +122°F)
Battery Voltage Range 2.0 to 3.3V dc

Battery Life Up to 5 years depending on sensor type, Wi-Fi security, distance from Wi-Fi router, reporting frequency and other variables. (Testing surpassed 90,000 transmissions until battery depletion.)

Wi-Fi Security Standards Open, WPA, WPA2 , WPA3 Security Standards

Additional Data Security Advanced Encryption Standard (AES)-128 Cipher Block Chaining

Network Settings Auto DHCP/DNS or Static

Data Rate Auto configures to best rate for maximum range

Data Logging Data logs 4000 to 4096 readings if the Wi-Fi connection is lost

Power/Utility Button Tactile (Powers device on/off, triggers data transmission, changes operating mode, etc.) 4

Wi-Fi Data Rate Auto configures to best rate for maximum range.

LED Lights Status / Activity 4

Weight 63g


1. The sensor is most responsive when used with less frequent Heartbeats. Heartbeats of 1 minute or greater is recommended.
2. The maximum range is greatest when the target is centered on the sensor, as the target moves farther from the center of the sensor in any direction the range reduces gradually (Ex: 5 M range when centered on sensor and 4 M on edge of widest detection angle). The lens has a potential viewing angle of 120° but the range is reduced to ~2 M beyond 80°.
3. The range assumes a 5' 8", 170-lb person moving across the sensor face from left to right wearing pants and a t-shirt. If the target is fully covered with insulating material or moving toward (not across) the sensor face, the actual detection range may be reduced.
4. For a full description of Button/LED behaviors see the Next Sensor General Information Guide.
5. Operating and storage altitude without DC power supply is -30.48 to 9144 m (-100 to 30000 ft).

Wi-Fi Specifications

Operating Frequency 802.11 b/g/n

Device Range 125 feet through five walls or 500 feet line of sight

Certifications FCC ID: 2AC7Z-ESPC3MINII CE ID: 0370-RED-5082 IC: 21098-ESPC3MINI1



Next Wi-Fi sensor case dimensions

Applications



Suggested Application Uses for This Sensor



  • Area access monitoring
  • Detect when people enter a room
