£23700(£284.40 incl. VAT)
Probe:
Part #:MNS2-8-W2-TS-SD-L10
Frequency:868 MHz (Euro)
Battery: 10 years
Range: 360 metres
Free Delivery
UK orders over £500
Money Back Guarantee
100% refund
X
Available Formats
Coin Cell
- Cost Low
- Battery 3 Years +
- Size Small
- Range 360m +
- Connectivity Gateway
AA
- Cost Average
- Battery 12 Years +
- Size Medium
- Range 360m +
- Connectivity Gateway
Industrial
- Cost Higher
- Battery 12 Years +
- Size Average
- Range 360m +
- Connectivity Gateway
- Waterproof IP65
- Solar Power Option
Wi-Fi
- Cost Higher
- Battery 5 Years
- Size Large
- Range 30m-50m
- Connectivity Wi-Fi
- No Gateway Required
Information
The ALTA Digital Temperature Sensor assesses the temperature of whatever environment the probe is in. At the push of a button, temperature readings are displayed on the device's digital display and sent to iMonnit software through a Monnit gateway(purchased separately), creating an easy-to-read log of current and past readings.
Specifications
Thermistor Specifications |
|
| Power Supply | 2.0-3.8 VDC (AA alkaline or lithium batteries) |
| Current Consumption | 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode) |
| Optimal Battery Operating Temperature | 0°F to 130°F (-18°C to 55°C) using alkaline -40°F to 185°F (-40°C to 85°C) using lithium |
| Operating Temperature | +50°F to +122°F (+10°C to +50°C) |
| Device Memory | Up to 3200 sensor messages |
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) |
| Weight | 3.08 ounces (Does not include battery weight) |
| Measuring Range | -40°F to +257°F (-40°C to +125°C) |
| Accuracy | +/- 1.8° F (1° C) |
| User Calibrated Accuracy | +/- 0.45° F (± 0.25° C) |
| Resolution | 0.1° F (0.1° C) |
| Response Time | 15 sec max |
| Lead Wire Length | Lead Length: 3 ft or 10 ft (Contact Monnit for custom length options) |
| Storage Temperature: | -4°F to 158°F (-20°C to 70°C) |
| Visual Confirmation | 14.0 mm x 26.0 mm |
ALTA AA Specifications |
|
| Battery Type | 2 Replaceable AA 1.5 V Batteries |

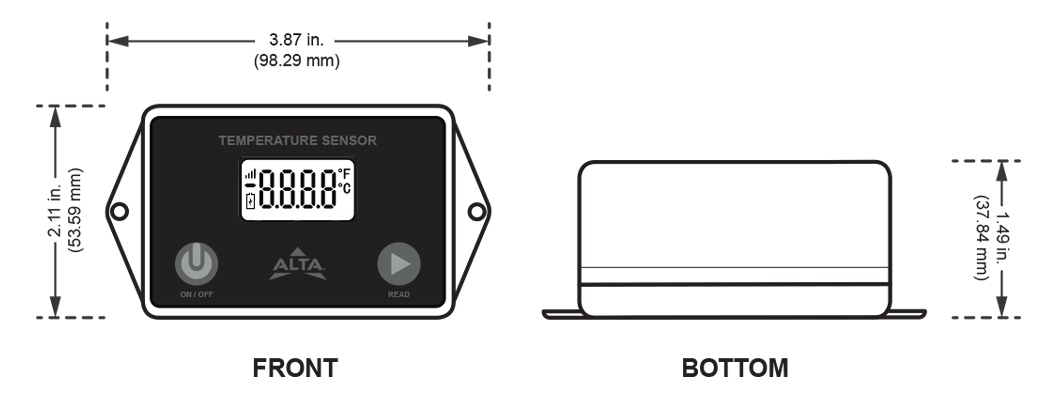

| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Supply Voltage | 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Battery Life | At 1 hour heartbeat setting, AA batteries will last up to 10 years.** |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
ALTA 868 MHz Specifications |
|
| Operating Frequency | 868 MHz Operating Frequency |
| Certifications | CE Certified. Tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950. |
| Security | Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC) |
| Device Range | Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* |
Documentation
Applications
Suggested Application Uses for This Sensor
- Freezer and cooler temperature monitoring to detect failure and prevent food spoilage
- Server room temperature monitoring
- Cadaver storage cooler temperature monitoring
- Greenhouse temperature monitoring
- Warehouse temperature monitoring to avoid frozen fire suppression systems
- Monitor vacant commercial property temperatures to avoid frozen pipes
- Summer/winter (vacation) property monitoring for frozen pipes or excessive heat
- HVAC system monitoring to detect failures or heating / cooling issues
- Monitor temperature of K9 units
- Art gallery temperature monitoring
Information
The ALTA Digital Temperature Sensor assesses the temperature of whatever environment the probe is in. At the push of a button, temperature readings are displayed on the device's digital display and sent to iMonnit software through a Monnit gateway(purchased separately), creating an easy-to-read log of current and past readings.
Specifications
Thermistor Specifications |
|
| Power Supply | 2.0-3.8 VDC (AA alkaline or lithium batteries) |
| Current Consumption | 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode) |
| Optimal Battery Operating Temperature | 0°F to 130°F (-18°C to 55°C) using alkaline -40°F to 185°F (-40°C to 85°C) using lithium |
| Operating Temperature | +50°F to +122°F (+10°C to +50°C) |
| Device Memory | Up to 3200 sensor messages |
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) |
| Weight | 3.08 ounces (Does not include battery weight) |
| Measuring Range | -40°F to +257°F (-40°C to +125°C) |
| Accuracy | +/- 1.8° F (1° C) |
| User Calibrated Accuracy | +/- 0.45° F (± 0.25° C) |
| Resolution | 0.1° F (0.1° C) |
| Response Time | 15 sec max |
| Lead Wire Length | Lead Length: 3 ft or 10 ft (Contact Monnit for custom length options) |
| Storage Temperature: | -4°F to 158°F (-20°C to 70°C) |
| Visual Confirmation | 14.0 mm x 26.0 mm |
ALTA AA Specifications |
|
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Supply Voltage | 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Battery Life | At 1 hour heartbeat setting, AA batteries will last up to 10 years.** |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
ALTA 868 MHz Specifications |
|
| Operating Frequency | 868 MHz Operating Frequency |
| Certifications | CE Certified. Tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950. |
| Security | Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC) |
| Device Range | Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* |
Documentation
Applications
Suggested Application Uses for This Sensor
- Freezer and cooler temperature monitoring to detect failure and prevent food spoilage
- Server room temperature monitoring
- Cadaver storage cooler temperature monitoring
- Greenhouse temperature monitoring
- Warehouse temperature monitoring to avoid frozen fire suppression systems
- Monitor vacant commercial property temperatures to avoid frozen pipes
- Summer/winter (vacation) property monitoring for frozen pipes or excessive heat
- HVAC system monitoring to detect failures or heating / cooling issues
- Monitor temperature of K9 units
- Art gallery temperature monitoring
