£9900(£118.80 incl. VAT)
Part #:MNS-8-W2-VM-500-SW
Frequency:868 MHz (Euro)
Battery: 3-4 years
Range: 100 metres
Free Delivery
UK orders over £500
Money Back Guarantee
100% refund
X
Available Formats
Coin Cell
- Cost Low
- Battery 2 Years
- Size Small
- Range 100m
- Connectivity Gateway
AA
- Cost Average
- Battery 4 Years
- Size Medium
- Range 100m
- Connectivity Gateway
Industrial
- Cost Higher
- Battery 5 Years
- Size Average
- Range 100m
- Connectivity Gateway
- Waterproof IP65
- Solar Power Option
Information
Product Description
Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC/VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.6 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
Notes:
WARNING: Use caution when interfacing to the Monnit Wireless Voltage Meter. Negative voltages, any kind of AC Voltages, or DC Voltage exceeding 600V WILL DAMAGE the electronics of the Monnit Wireless Sensor. Monnit is not responsible for troubleshooting, replacing or reimbursing damages incurred by disregarding this warning.
Product Features
- Interfaces with devices and power supplies up to 500 VAC/VDC
- Max sensor input voltage up to 600 volts (will return a max of 500 volts in software)
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.

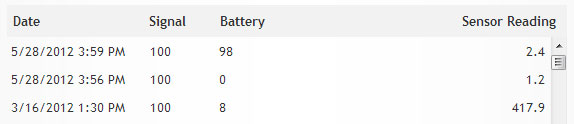

What does this wireless sensor's data look like in software?
What's in the box?
- Wireless Sensors
Specifications
Voltage Meter Specifications | |
| Maximum Rated Input Voltage | Up to 600 VAC/VDC (will return a max of 500V in software) |
| Full Scale Voltage | 0 - 500 VAC/VDC |
AA Specifications | |
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temperature Using AA Alkaline | -18° to 55°C (0° to 130°F) |
| Max Operating Temperature Using AA Lithium | -40° to 85°C (-40° to 185°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
866 Mhz Specifications | |
| Operating Frequency | 866 Mhz Operating Frequency |
| Certifications | CE Certified and Complies with CISPR 22:2008-09 / EN 55022:2010 - Class B and ETSI EN 300 220-2 V2.4.1 (2012-05) |
Contact us for volume quantity purchases of RoHS compliant product.
Applications
Suggested Application Uses for This Sensor
- Appliance monitoring
- Line power monitoring
- Power coupling monitoring
- Power supply monitoring
- Sump pump monitoring
Information
Product Description
Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC/VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.6 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
Notes:
WARNING: Use caution when interfacing to the Monnit Wireless Voltage Meter. Negative voltages, any kind of AC Voltages, or DC Voltage exceeding 600V WILL DAMAGE the electronics of the Monnit Wireless Sensor. Monnit is not responsible for troubleshooting, replacing or reimbursing damages incurred by disregarding this warning.
Product Features
- Interfaces with devices and power supplies up to 500 VAC/VDC
- Max sensor input voltage up to 600 volts (will return a max of 500 volts in software)
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
What does this wireless sensor's data look like in software?
What's in the box?
- Wireless Sensors
Specifications
Voltage Meter Specifications | |
| Maximum Rated Input Voltage | Up to 600 VAC/VDC (will return a max of 500V in software) |
| Full Scale Voltage | 0 - 500 VAC/VDC |
AA Specifications | |
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temperature Using AA Alkaline | -18° to 55°C (0° to 130°F) |
| Max Operating Temperature Using AA Lithium | -40° to 85°C (-40° to 185°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
866 Mhz Specifications | |
| Operating Frequency | 866 Mhz Operating Frequency |
| Certifications | CE Certified and Complies with CISPR 22:2008-09 / EN 55022:2010 - Class B and ETSI EN 300 220-2 V2.4.1 (2012-05) |
Contact us for volume quantity purchases of RoHS compliant product.
Applications
Suggested Application Uses for This Sensor
- Appliance monitoring
- Line power monitoring
- Power coupling monitoring
- Power supply monitoring
- Sump pump monitoring
